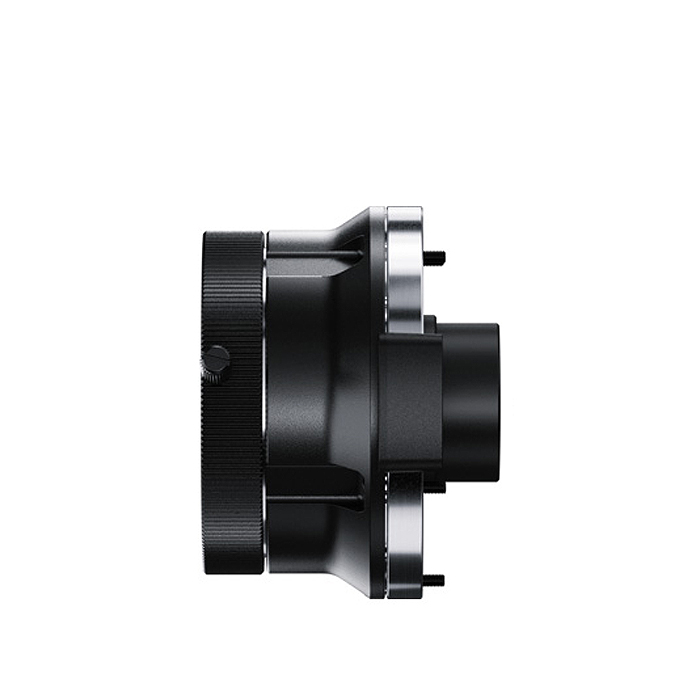

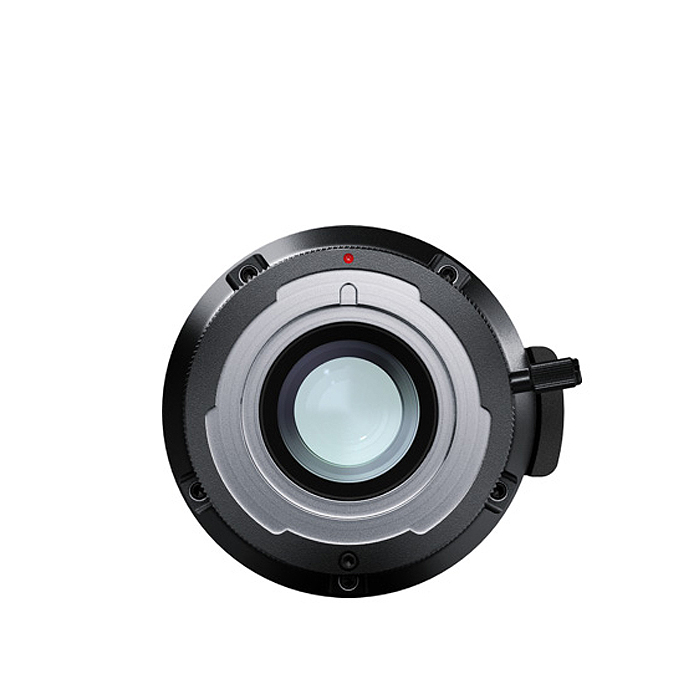

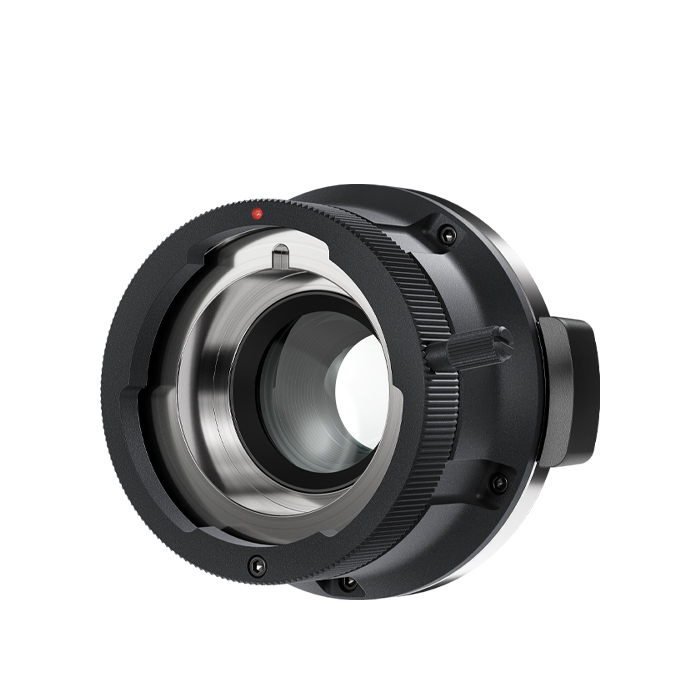

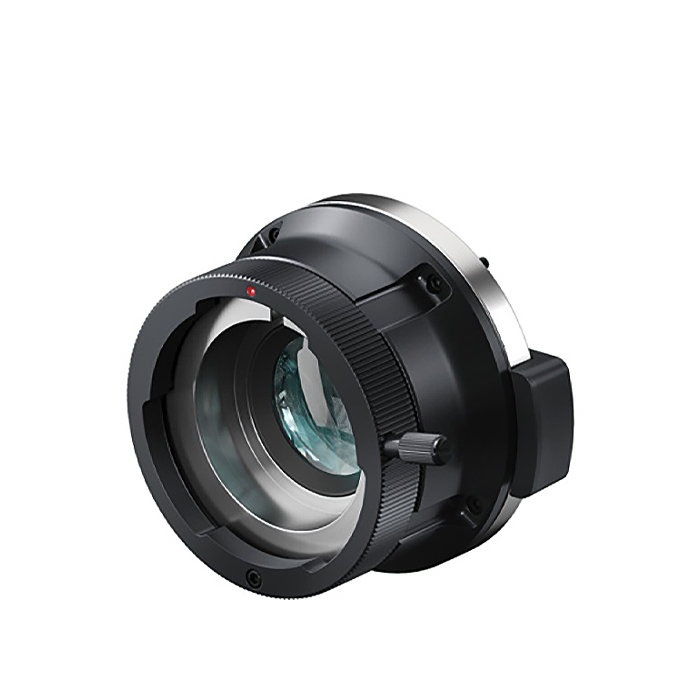

BLACKMAGIC URSA MINI PRO B4 MOUNT

Blackmagic Design URSA Mini Pro B4 Mount

Turn your URSA Mini Pro into an incredibly compact broadcast camera that you can use with your existing high definition B4 broadcast lenses! URSA Mini Pro features a standard 12-pin Hirose lens control connection that’s compatible with both B4 and PL lenses. You can remotely control record start/stop, iris and motorized zoom lenses!
The URSA Mini Pro B4 Mount is a replacement mount for the URSA Mini Pro.
This mount enables using your ENG-style B4 mounted HD.
The mount incorporates corrective optics that enable the use of a lens designed to work on a camera with three sensors and a prism, on the URSA Mini Pro, which is a single-sensor camera, without the image suffering from optical degradation.

Lens Mount Features:

• Optics Resolution: 2048 x 1152
• Image Circle: 10.56mm x 5.94mm
• Magnification: 1.1x
• Lens Mount: B4 Bayonet style with locking ring
• B4 Spherical Aberration Correction: Yes

What's Included:

• Blackmagic URSA Mini Pro B4 Mount
• Moulded Mount Case
• Turret Dust Cap
• Lens Rear Protective Cover
• Shim Set
• Spare Mounting Screws
• Printed Instructions
