PORTKEYS BM5III-WR 5.5"

Portkeys BM5 III WR 5.5" Touch Screen monitor

• A 2200 Nits ultra clear HDMI SDI Touch Screen 5.5" Monitor with 3D Luts and built-in camera control module
• Aluminum alloy touch screen monitor + tempered glass with 1920x1080 resolution
• Camera Control: Photo, Video Recording, AV, Tv, ISO, Auto Focus, Zoom, Manual Focus

The BM5 III WR is a future-proof monitor with SDI and HDMI video inputs. Also, the SDI video output with HDMI cross-conversion ensures perfect video continuity no matter where the monitor is placed in the video signal chain. The SDI Output can output a clean video feed, but you can also output a 3D LUT and peaking if needed.

Camera Control

Portkeys BM5 WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5 WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control.

Camera Control Compatibility (Includes but not limited to):

LANC Control Cable:

Rec, Iris, Zoom, Focus, Digital zoom, Display, Function, Joystick, Wheel, Playback, Menu

• Sony FS5, FS7, FX6, FX9
• Canon C300 III, C300 II, C200, C100, C700
• Blackmagic Ursa Mini 4K, 4.6K, Pro 4.6K G2, Cinema camera 2.7K, 4K

Multi Control Cable:

Rec, Take photos, Iris, ISO, Shutter, Zoom, Single focus

• Sony FX3, FX30, A1, ZV-E10, ZV-1, A9, A9II, A7 III, A7R III, A7S III, A7R IV, A7 IV, A7C, A6000, A6300, A6400, A6500, RX100, RX0 II

Type-C (USB-C) Control Cable:

Rec, Take photos, Iris, ISO, Shutter, Zoom, Single focus

• Sony FX3, FX30, A1, ZV-E10, ZV-1, A9, A9II, A7 III, A7R III, A7S III, A7R IV, A7 IV, A7C
• Canon EOS R
• Panasonic Lumix S1, S1H, S1R, GH6, GH5 II, S5 II, G9, BGH1, BS1H

Micro USB Control Cable:

Rec, Iris, ISO, Shutter, Shooting, Auto focus, Real-time preview, Manual focus

• Canon EOS 5D IV, EOS 5DS R, EOS 5DS, 1DX II, 1DX

Mini USB Control Cable:

Rec, Iris, ISO, Shutter, Shooting, Auto focus, Real-time preview, Manual focus

• Canon EOS 5D III, EOS 5D II, EOS 6D II, 6D, EOS 80D

Wi-Fi Control:

Rec, Iris, ISO, Shutter, Focus, WB, EV, Exposure mode, Focus area, Single focus, Touch focus

• Sony FX3, FX30, A1, ZV-E10, ZV-1, A9II, A7S III, A7R IV, A7 IV, A7C
• Red Komodo, Komodo-X, V-Raptor, V-Raptor XL

Bluetooth Control:

Rec, Playback, Iris, Focus, ISO, Shutter, Auto exposure, WB, Resolution, Framerate, Codecs, Quality

• Blackmagic Pocket Camera 4K, 6K, 6K Pro

RCP2, DSMC2 Control:

Rec, Focus, Iris, Shutter, ISO, FPS, CT, EV, Auto focus, Touch focus, Mode switching

• Red Komodo, Komodo-X, V-Raptor, V-Raptor XL

Tilta Nucleus N/M Control Cable:

Calibration, A/B limit

• Tilta Nucleus Nano, Nucleus M

Robust design

Rugged aluminum alloy shell design, durable and lightweight. BM5 WR uses a sturdy aluminum alloy shell and weighs only 376g, which can withstand heavy daily operations, so it is easy to carry when shooting.

2200nits Super Bright, Sees Everything Clearly in Daylight

Portkeys BM5 WR offers a 2200nits ultra-high brightness 5.5-inch display with a clear resolution, excellent color, and contrast, and precise image control.

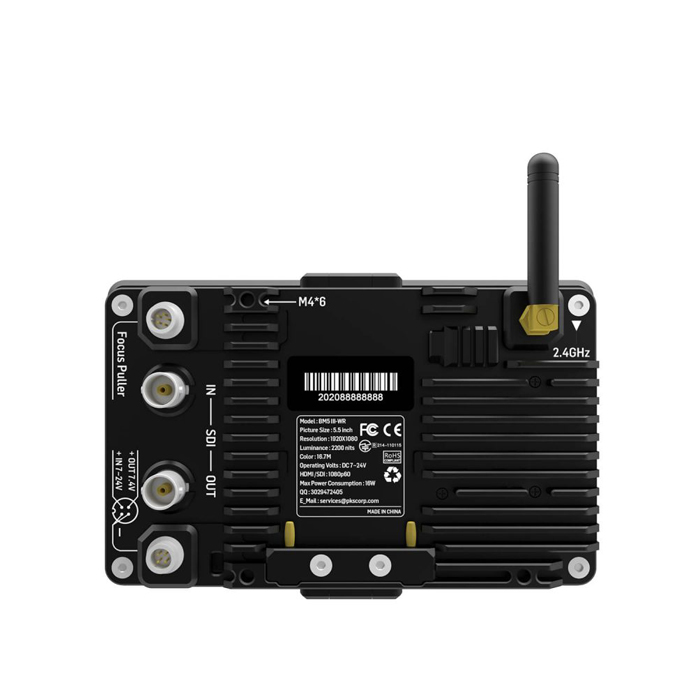

HDMI/SDI Loop Out

The SDI input provides real-time monitoring. SDI OUT can output an image superimposed with 3DLUT and a new peak.

Color calibration

Each BM5 WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors.

10-bit (8+2 FRC)

The 10-bit color depth makes the display color reproduction more accurate, the image quality is more delicate, and the level is richer.

New Peaking

The optimized new peaking algorithm can accurately capture the subtle facial focus. IRE can be set freely for ARRI false color.

High-precision Waveform

The high-precision full-screen waveform can accurately capture 1920X1080 pixels frame by frame.

Semi-Transparent Superimposable Frozen Frame Image

The freeze-frame can be semi-transparently superimposed on the HDMI or SDI video so that the photographer can correct the displacement.

Tilta Wired Motors Control for Nucleus N / M and Cursor Display

The BM5 III-WR supports wired control of the Tilta Nucleus Nano / M and can display the position of the iron head wireless follow the focus scale. All in all, it can provide professional content creators with reliable tools for various scenario.

In the Box:

• 1 x BM5 III WR Monitor
• 1 x Power Cord 100cm (4-pin aviation to D-tap)
• 1 x Power Cord 40cm (4-pin aviation to DC)
• 1 x L-Type Antenna
• 1 x LANC Control Cable 40cm
• 1 x Type-C Control Cable 40cm
• 1 x Warm Prompt Card
• 1 x Safety Box
• 1 x USB (Manual, 3D LUTs, Firmware Inside)
