SMALLRIG 4183 CAGE FOR SONY FX30/FX3 NEW VERSION

SmallRig 4183 Cage for Sony FX30 / FX3

• Full cage that protects Sony FX30 / FX3
• Modular design with removable NATO rail; supports the original XLR top handle

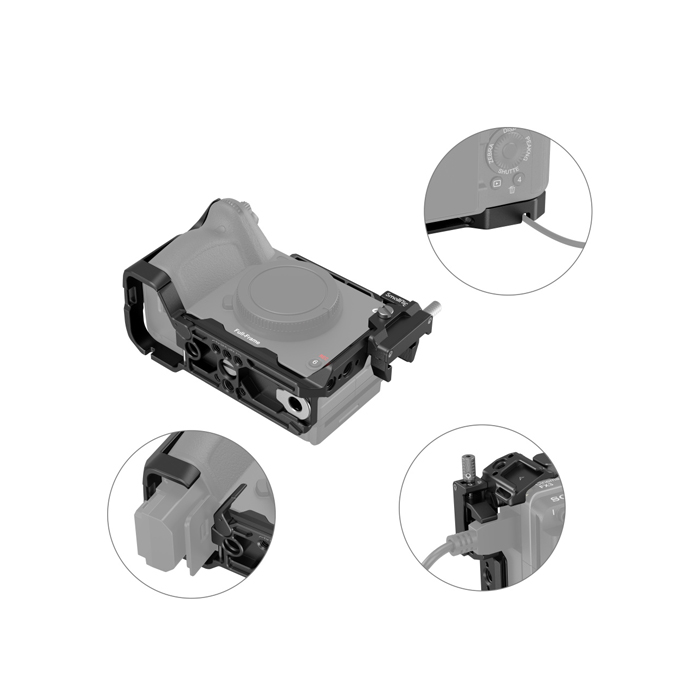

• Hinge arm at the battery door fits camera curve for improved grip experience
• Dedicated HDMI cable clamp ensures stable signal transmission

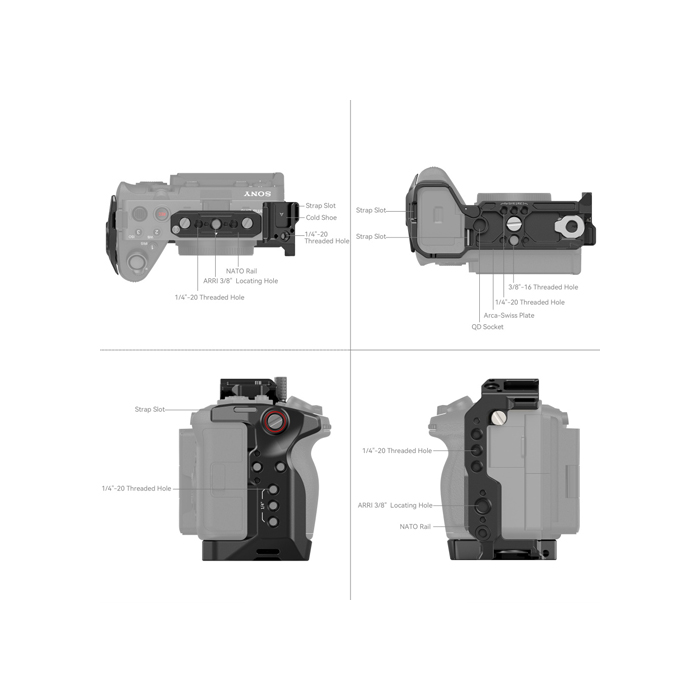

• 1/4"-20 threaded holes, ARRI 3/8"-16 locating holes, cold shoe mounts, NATO rails, QD port
• Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RS 3 gimbal and Arca-Swiss tripod

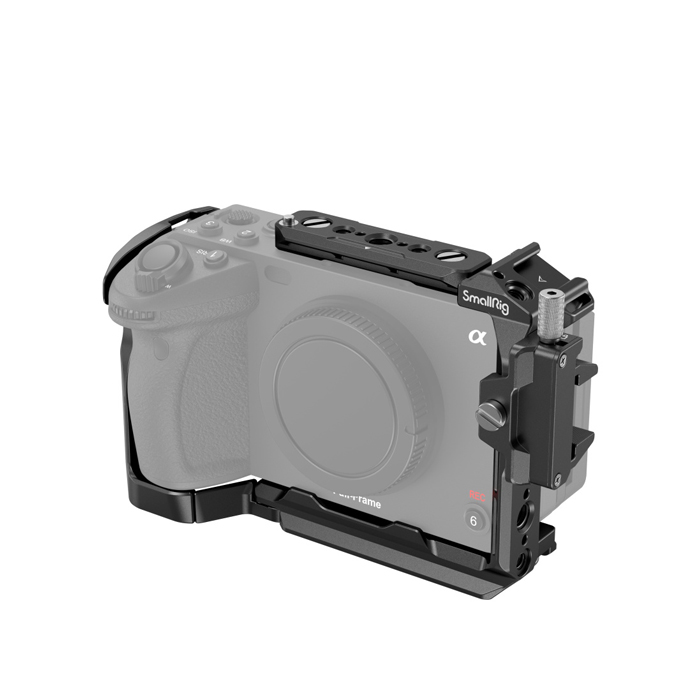

SmallRig Cage for Sony FX30 / FX3 4183 is designed to protect camera and provide accessory mounting points. The modular cage consists of a NATO rail and a U-shaped cage.

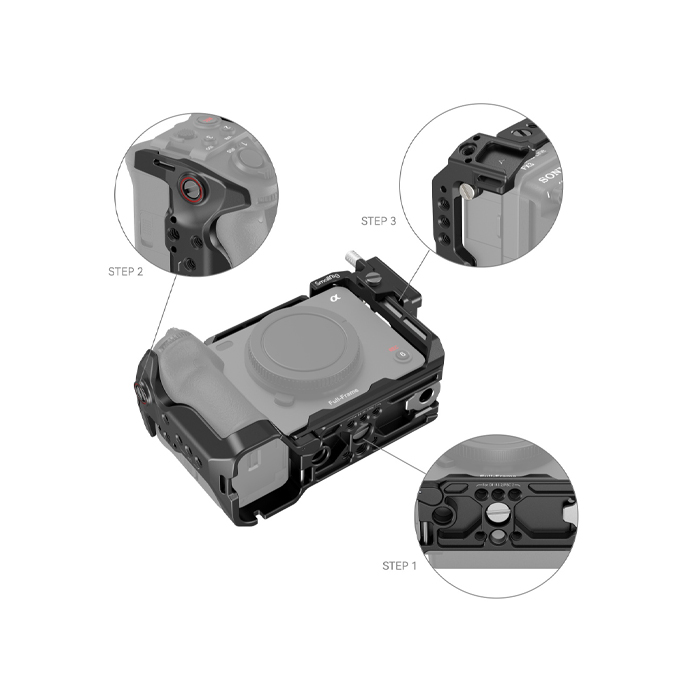

The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle. The U-shaped cage is fixed via 1/4"-20 screws on both sides and at the bottom to prevent twisting, with a cushion against scratches.

At the battery door there is a hinge arm that fits camera curve for improved grip experience for little finger. A dedicated HDMI cable clamp protects interfaces to ensure stable signal transmission.

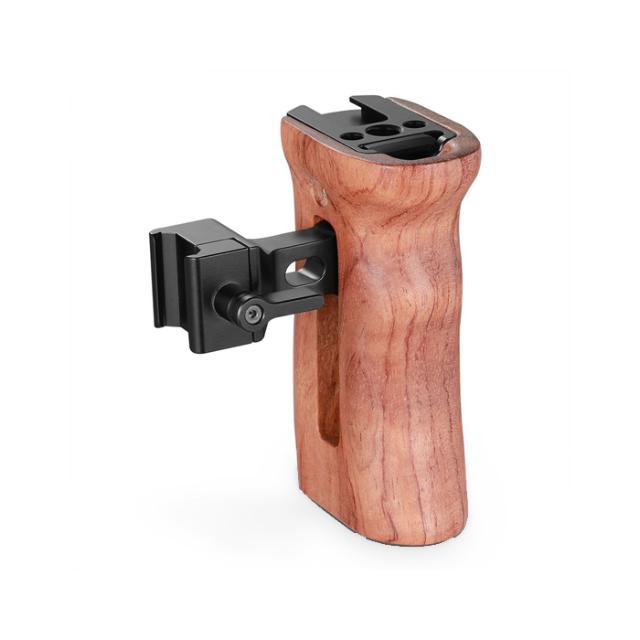

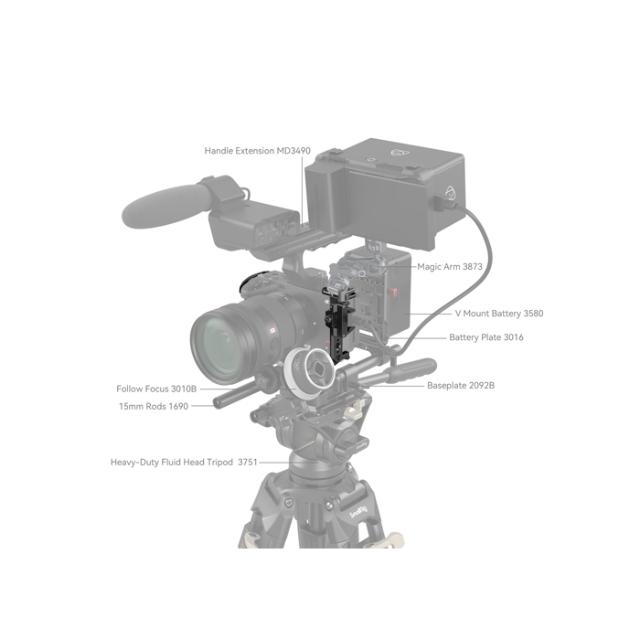

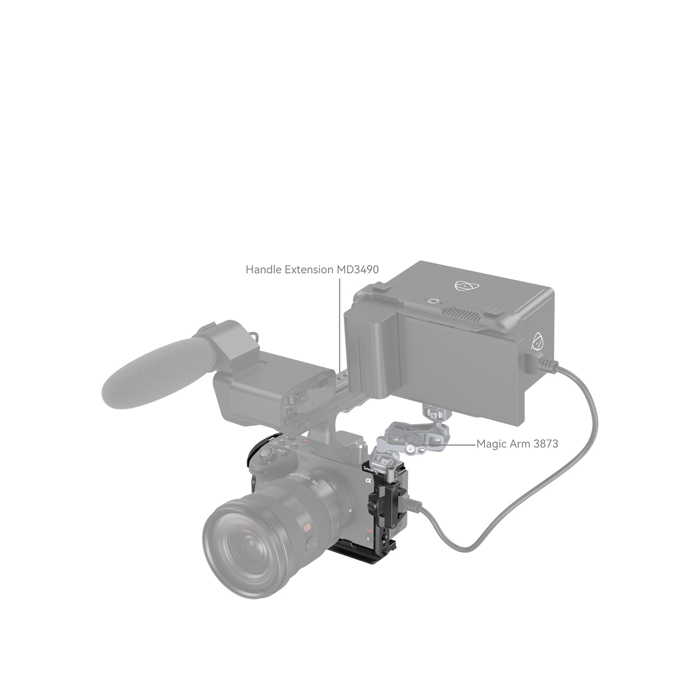

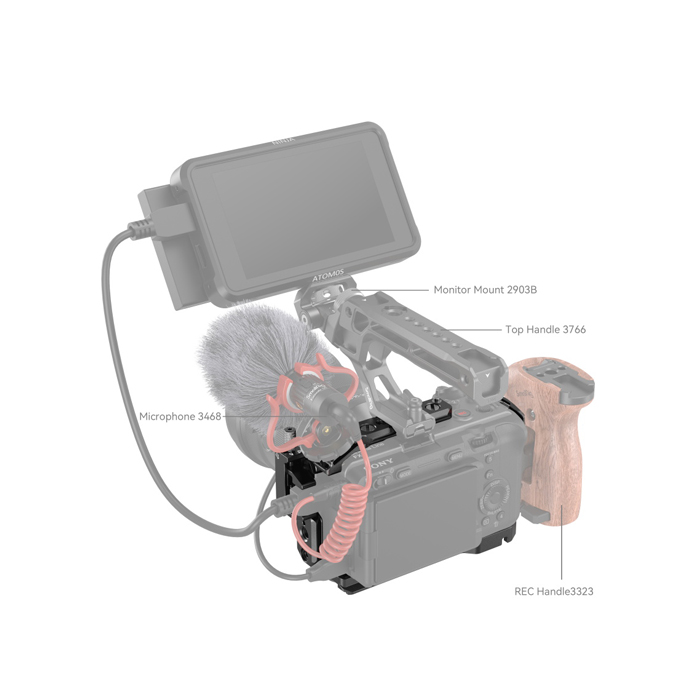

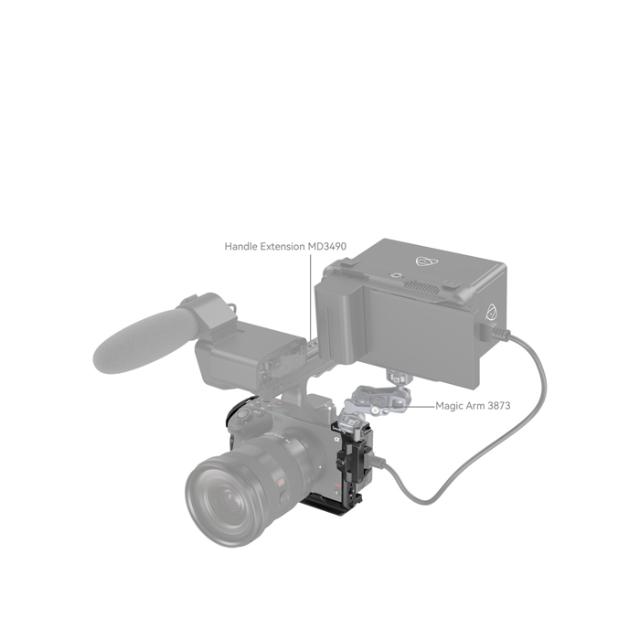

Among its varied accessory mounts, 1/4"-20 holes support Magic Arm 2070. ARRI 3/8"-16 locating holes connect Top Handle 2165C or Monitor Mount 2903B. The top NATO rail supports Top Handle 3322, and the left one, Side Handle 2187B.

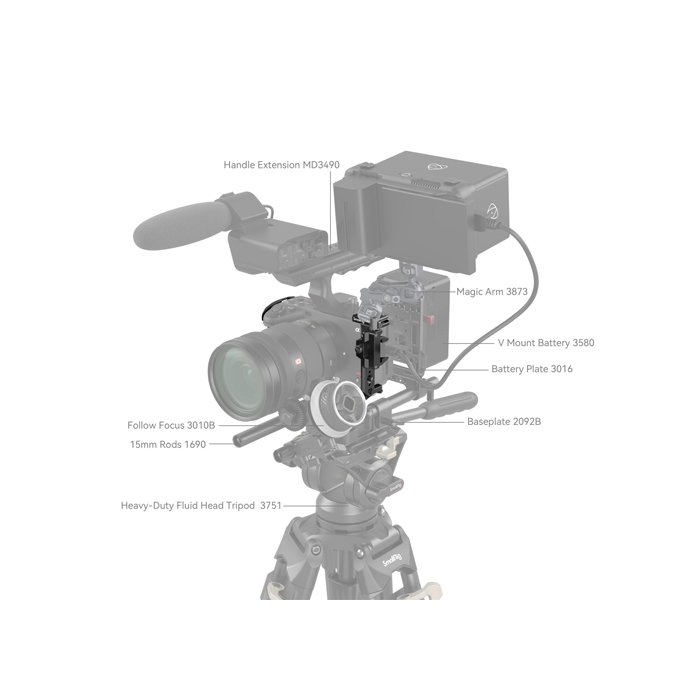

1/4"-20 locating holes at the top-left quarter and on the left side attach Rod Clamp 3598 for follow focus. Two 1/4"-20 holes on the right side allow being securely mounted onto a quick release plate for vertical shooting. The cold shoe mount supports microphone, LED light; and the QD port at the bottom fits QD strap.

An Arca-Swiss quick release plate at the bottom can attach DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro directly or quick release plate (height increase pad) for DJI RS 2 / RSC 2 gimbal and Arca-Type Quick Release Plate 3154. Both sides and the bottom have holes for Hand Strap 3848 and Shoulder Strap PSC2428. A magnetic spanner is also included for easy assembly and disassembly.

Compatibility:

• Sony FX3
• Sony FX30

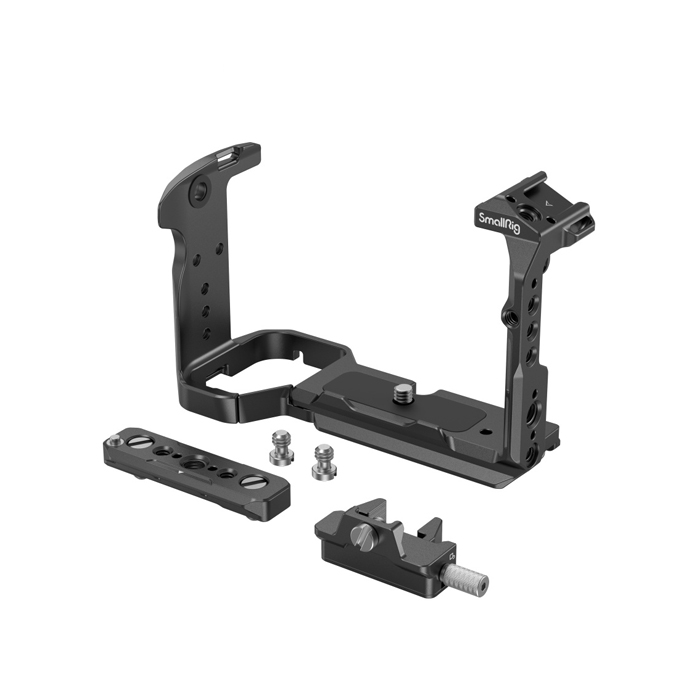

In the Box:

• 1 x Cage
• 1 x NATO rail
• 1 x HDMI Cable Clamp
• 2 x 1/4”-20 Screw

Specifications:

• Product Dimensions: 159 x 101.2 x 66.2mm
• Product Weight: 195±5g
• Materials: Aluminum Alloy, Stainless Steel
