Sony XDCA-FX9 Extension Unit for FX9
- Adds Additional I/O to Sony FX9
- Compatible with XDCAM Air Streaming
- REF, Raw Video & Timecode BNC Outputs
- Wired LAN, 2 x USB Type-A Outputs
- Adds ENG Shoulder Mount Capability
- 4-Pin XLR 10 to 12.5 VDC Power Output
Enhanced operability with advanced networking, wireless audio and RAW output

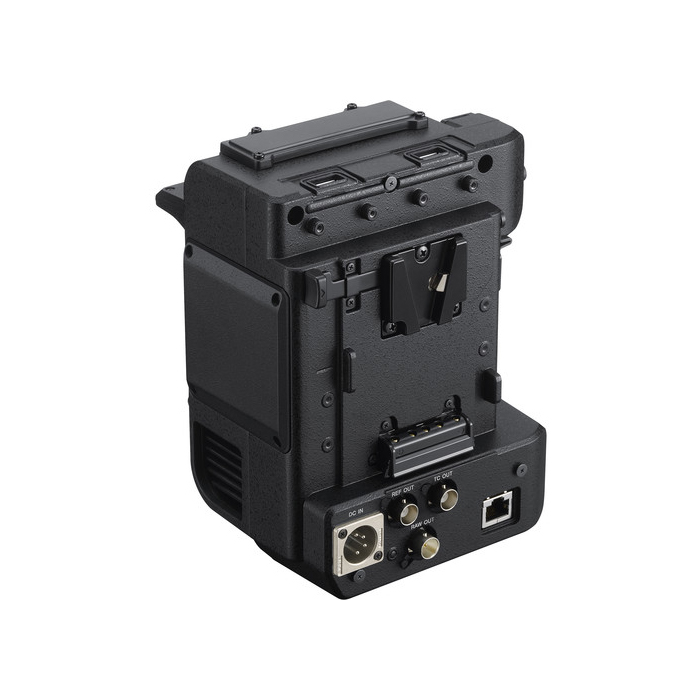

Connecting directly to the PXW-FX9 camera with no cables needed, the XDCA-FX9 extension unit provides convenient additional features to enhance shooting convenience and flexibility.
The XDCA-FX9 allows easy fitting of BP-GL and BP-FL series batteries, extending camera operating times during the most demanding shoots.
Attaching quickly and easily to the rear of the PXW-FX9 via a MultiPin connector, the XDCA-FX9 provides advanced networking capabilities for streaming or file transfer via Ethernet or dual link cellular connection. It also allows the easy addition of high quality wireless audio via a wireless receiver slot.
Additional output connectors including timecode and D-tap are also provided.
16-bit RAW signals can be output directly from the XDCA-FX9 using a third-party external recorder.
The XDCA-FX9’s RJ45 Ethernet support enables wired RCP control of Exposure, White Balance and more. XDCA-FX9 can power B4 lens when used with optional LA-EB1.
Seamless attachment, superb ergonomics

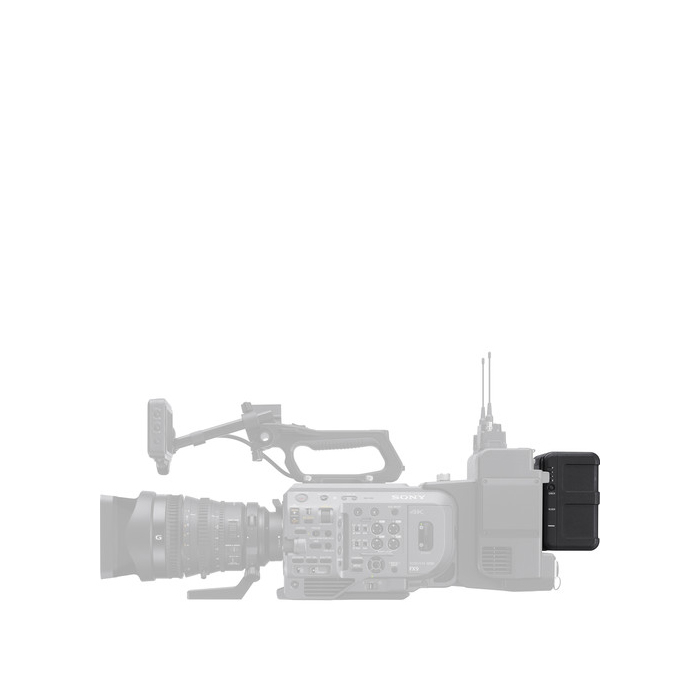

The XDCA-FX9 attaches directly to the PXW-FX9 via MultiPin connector, with no additional cabling required. Shooting time is extended by compatibility with Sony BP-GL and BP-FL series batteries. When using larger lenses, the extension unit balances any possible front heaviness while increasing stability when the camera is shoulder mounted.
16-bit RAW recording with external recorder
Adding the XDCA-FX9 extension unit to the PXW-FX9 allows recording of 16-bit RAW footage from the camera on a third-party RAW recorder (available separately). RAW data is output directly via the extension unit’s RAW interface.
Advanced network capabilities
The built-in networking capabilities of the PXW-FX9 enable streaming and file transfer via Wireless LAN. The XDCA-FX9 adds QoS Streaming with Dual Link connection via multiplexing of two cellular networks or Ethernet connection to improve image quality and stability.
Wireless audio support
Ideal for field-based news production, the extension unit adds a wireless audio receiver slot for compatibility with receivers such as DWX series and URX series.
RCP remote control with Ethernet
The XDCA-FX9’s RJ45 Ethernet support enables wired RCP control of Exposure, White Balance and more.
